The DKSORTHO Liner (Un-Cemented) 10° is specially designed for un-cemented acetabular cups in hip replacement surgeries. Its 10° angled design helps the hip joint move naturally, improves range of motion, and reduces the risk of impingement. Made from high-quality UHMWPE, the liner offers excellent durability and smooth movement. The un-cemented design ensures a secure press-fit and encourages the bone to grow into the cup for long-term stability. Available in multiple sizes, it fits precisely to support each patient’s anatomy.

Ortho
Ortho

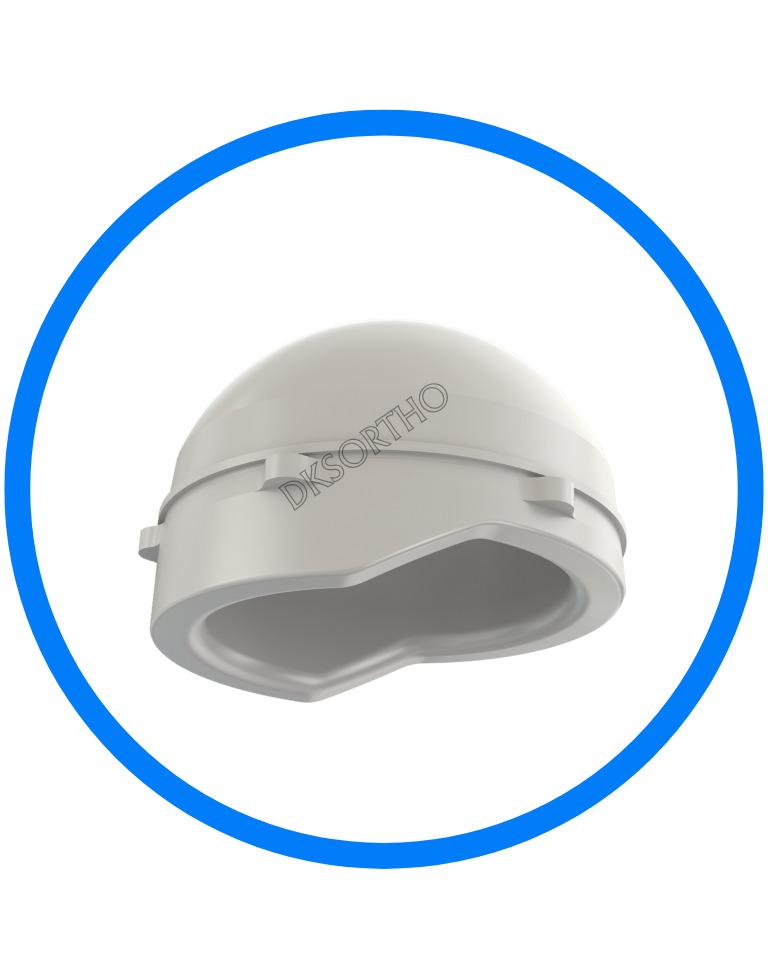

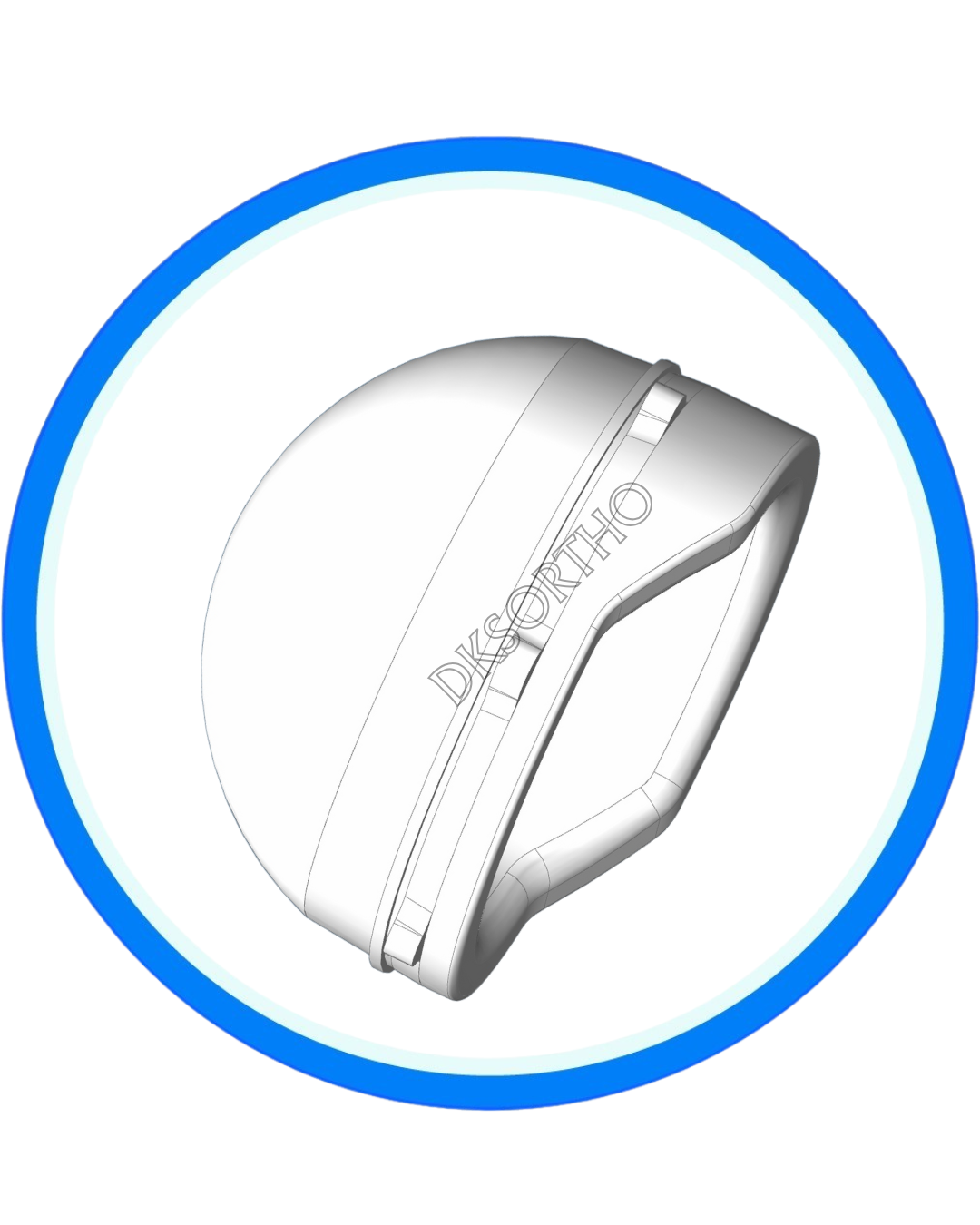

Liner (Un - Cemented) 10°

The DKSORTHO Liner (Un-Cemented) 10° is specially designed for un-cemented acetabular cups in hip replacement surgeries. Its 10° angled design helps the hip joint move naturally, improves range of motion, and reduces the risk of impingement. Made from high-quality UHMWPE, the liner offers excellent durability and smooth movement. The un-cemented design ensures a secure press-fit and encourages the bone to grow into the cup for long-term stability. Available in multiple sizes, it fits precisely to support each patient’s anatomy.

Liner (Un - Cemented) 10°

DESCRIPTION
Material XLPE / UHMWPE
Internal Head Dia. 28 mm, 32 mm, 36 mm
Liner Dia. 40 mm To 64 mm (Diff. 2 mm)
Posterior Lift 10° Lift
Material : XLPE / UHMWPE
Internal Head Dia. : 28 mm, 32 mm, 36 mm
Liner Dia. : 40 mm To 64 mm (Diff. 2 mm)
Posterior Lift : 10° Lift

Features :
——————

• 10° angled design for natural joint movement
• Un-cemented fixation for bone ingrowth
• Durable, low-wear UHMWPE material
• Smooth articulating surface for minimal friction
• Multiple sizes for precise anatomical fit

This liner is designed to give patients comfortable, stable, and long-lasting hip function.




Internal Head Dia. 28 mm 32 mm 36 mm
Liner Dia. CAT. No. XLPE CAT. No. UHMWPE CAT. No. XLPE CAT. No. UHMWPE CAT. No. XLPE CAT. No. UHMWPE

40 mm S23.THR6495-H S23.THR6131-U X X X X
42 mm S23.THR6496-H S23.THR6132-U X X X X
44 mm S23.THR6497-H S23.THR6133-U X X X X
46 mm S23.THR6498-H S23.THR6134-U X X X X
48 mm X X S23.THR6512-H S23.THR6481-U X X
50 mm X X S23.THR6513-H S23.THR6482-U X X
52 mm X X X X S23.THR6527-H S23.THR6139-U
54 mm X X X X S23.THR6528-H S23.THR6140-U
56 mm X X X X S23.THR6529-H S23.THR6141-U
58 mm X X X X S23.THR6530-H S23.THR6142-U
60 mm X X X X S23.THR6531-H S23.THR6143-U
62 mm X X X X S23.THR6532-H S23.THR6144-U
64 mm X X X X S23.THR6533-H S23.THR6145-U
